We supply Plastic Centrifugal Pumps made of UHMW-PE, PTFE/PFA and PVDF for all type of Acids and Corrosive fluids process. Our plastic pumps satisfy the highest security and quality specifications.

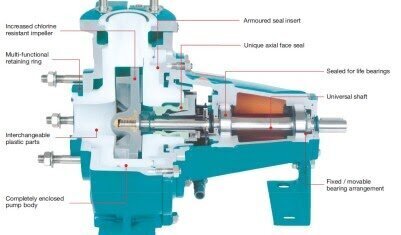

Standard Chemical Pump of Plastic Material-Type NE: Single stage process designed radial centrifugal pump, with back pull-our facility. Semi-open or closed impeller. Thick walled interchangeable plastic parts. Grease and oil lubricated versions available. Flow rate 0.5-1000 m3/h. Differential head up to 110 m

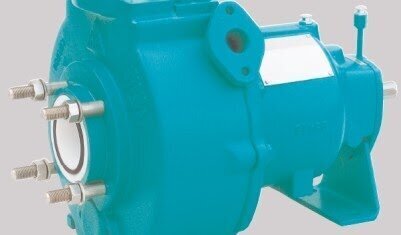

Standard Chemical Pump of plastic material with Magnetic Drive-Type NM: Single stage process designed radial centrifugal pump. Semi-open impeller. Hermetic tight through eddicurrent free CFK/PTFE isolation shell. Magnetic couplings out of cobalt- samarium between 25 Nm and 100 Nm. Flowrate 0.5-70 m3/h. Differential head up to 70 m.
Process Pump of Plastic material-Type SP: Closed impeller, specially designed for high abrasion applications. High efficiency as comparable metallic pumps. Flowrate 500-2300 m3/h. Differential head up to 40 m.

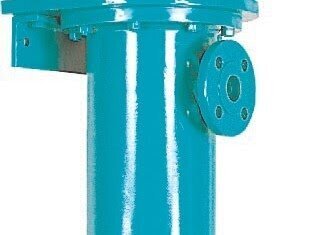

Vertical Immersion Pump Chemical Pump of Plastic Material-Type VKPF: For conveying aggressive, corrosive or solid laden liquids from basins, vessels or sumps. Space saving version for fixing to side of vessel available (NKPF type). Flowrate 0.5-800 m3/h. Differential head up to 110 m.
Standard Chemical Pump of Plastic Material-Type NE: Single stage process designed radial centrifugal pump, with back pull-our facility. Semi-open or closed impeller. Thick walled interchangeable plastic parts. Grease and oil lubricated versions available. Flow rate 0.5-1000 m3/h. Differential head up to 110 m
Standard Chemical Pump of plastic material with Magnetic Drive-Type NM: Single stage process designed radial centrifugal pump. Semi-open impeller. Hermetic tight through eddicurrent free CFK/PTFE isolation shell. Magnetic couplings out of cobalt- samarium between 25 Nm and 100 Nm. Flowrate 0.5-70 m3/h. Differential head up to 70 m.
Process Pump of Plastic material-Type SP: Closed impeller, specially designed for high abrasion applications. High efficiency as comparable metallic pumps. Flowrate 500-2300 m3/h. Differential head up to 40 m.
Vertical Immersion Pump Chemical Pump of Plastic Material-Type VKPF: For conveying aggressive, corrosive or solid laden liquids from basins, vessels or sumps. Space saving version for fixing to side of vessel available (NKPF type). Flowrate 0.5-800 m3/h. Differential head up to 110 m.
