SINK ROLLS, STAB ROLLS, DEFLECTOR ROLLS, FURNACE ROLLS FOR CGL

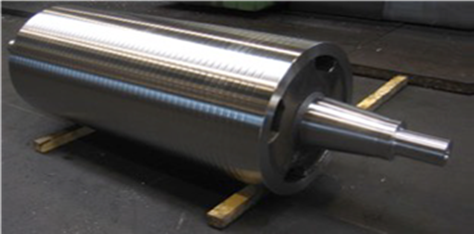

  • Sink and Stabilizing rolls in AISI 316L alloy (CF3M) without coating and with machined rolls tables according to customers' requirements for the galvanizing lines. For aluminizing or galvalume bath, the sink and stabilizer rolls are also produced in our alloy.

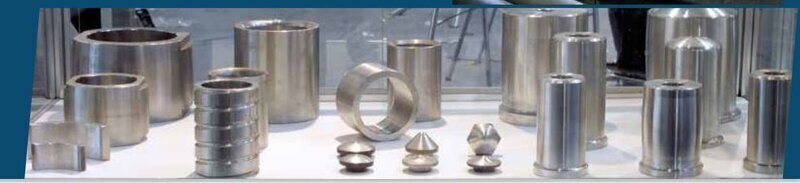

  • Sleeves and bushings for zinc bath either in cobalt alloys or in our pallet alloy.
  • Snouts in a mixed cast-wrought construction in AISI 316L alloy(CF3M)
  • arms for sink and stabilizing rolls in AISI 316L alloy(CF3M) as per customer’s drawings.
  • A Furnace roller or furnace roll is a heat resistant roller used in roller hearth furnaces and other industrial equipment. They are used to allow products to easily move into, through, and out of furnaces, kilns and ovens.
    Furnace rollers consist of a cylinder (solid or hollow) or disks mounted via bearings on a central shaft. They can be powered, actively moving items through the furnace, or unpowered. Furnace rollers can be made in many different sizes and from different materials to suit various applications and temperature ranges. Typical materials include nickel chromium and molybdenum.
    Centrifugally cast furnace rolls (water cooled or dry) up to 1200 mm.O.D. These rolls are delivered assembled. Machined and balanced, ready to be installed.
